Most seam failures don't announce themselves. A pillow bladder that held fine in year one starts weeping at a corner in year three. By year four, you're sourcing a replacement. Pull the original spec sheet: 900 gsm PVC, reinforced corners, all the right numbers. What wasn't listed — because nobody asked — was how those panels were joined. It should be the first question.
Here's what seam construction actually tells you about a flexible tank.

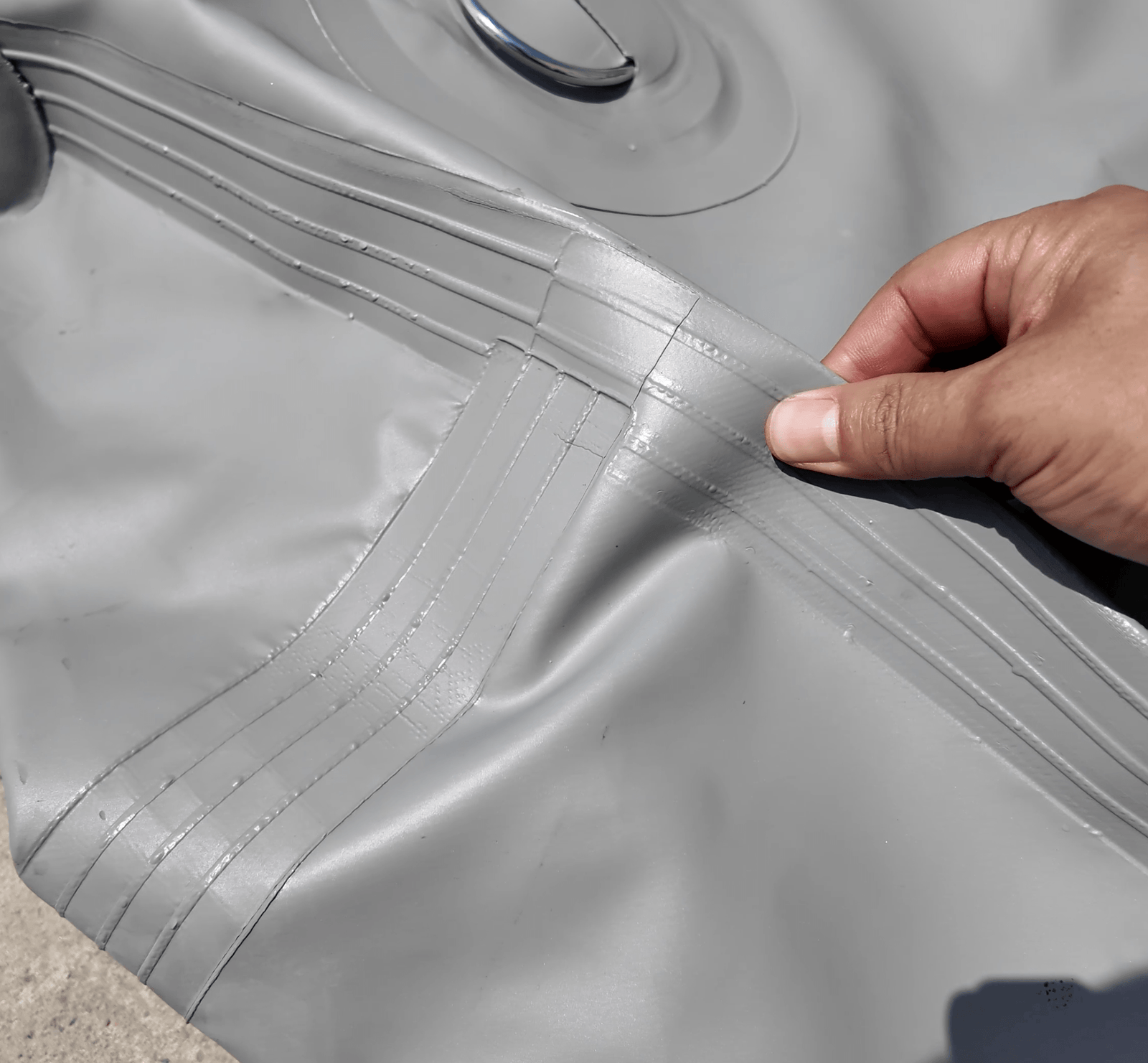

HF welding fuses through the full depth of the PVC coating — not just at the surface.
Why the Seam Determines Everything Else
A flexible bladder is only as strong as its weakest joint. The fabric itself — 650, 900, or 1,100 gsm PVC-coated polyester — is well understood. Pull-test values are standardised, UV resistance curves are documented. What varies enormously between manufacturers is what happens at the seam: how panels are connected, how that connection ages under hydrostatic load and UV cycling, and what failure looks like when it eventually comes.
There are two methods in use across the industry. The difference between them isn't incremental.
HF Welding: Fusion, Not Bonding
High-frequency welding uses 27 MHz electromagnetic energy to excite the polar molecules in PVC-coated fabric. Where two layers are pressed together under a shaped electrode die, molecular friction generates heat uniformly through the coating depth. The layers fuse — not surface to surface, but through the full thickness of the PVC.
The practical result: the seam becomes structurally continuous with the fabric. No adhesive layer to degrade, no interface that can delaminate, no exposed seam edge vulnerable to UV or moisture ingress. Pull an HF-welded seam to destruction and it fails in the base fabric — not at the weld. The joint is stronger than the material it joins.
We run HF welding in-house across our full product range — ZolinFlex cube tanks, pillow bladders, folding frame tanks, onion tanks, and ZolinAg open-top fish tanks. In-house means the parameters that matter — dwell time, electrode pressure, frequency, die configuration — are controlled and documented for every production batch. It's not a detail most buyers think to ask about, but it's worth understanding when you're comparing quotes.
Adhesive Bonding: Where It Works and Where It Doesn't
Adhesive bonding joins panels using contact adhesive applied to overlapping edges, forming a bond at the surface of the PVC coating. It requires less capital equipment than HF welding and is entirely adequate for some applications — field repairs, lightweight covers, short-duration deployments where the tank won't spend years outdoors.
The problem is the interface. Bond strength depends on adhesive chemistry, surface preparation, application consistency, and cure time — variables that are difficult to control uniformly across a production run. Under sustained hydrostatic load, adhesive-bonded seams creep. Plasticiser migration from the PVC attacks the adhesive layer over time. UV radiation degrades exposed seam edges. None of this shows up in year one.
Seam Performance: Side by Side
| Factor | HF-Welded | Adhesive-Bonded |
|---|---|---|
| Bond mechanism | Molecular fusion through PVC coating depth | Surface adhesion at coating interface |
| Seam strength vs fabric | Equal to or exceeds base fabric | Typically 60–80% of base fabric |
| Creep under sustained load | Negligible — fused structure | Progressive under hydrostatic pressure |
| UV resistance at seam | No exposed interface; fabric resistance applies | Adhesive and seam edge are vulnerable |
| Temperature range | Stable −20°C to +70°C | Softens at high temp, embrittles at low |
| Production consistency | High — electronically controlled parameters | Operator and process dependent |
What This Means in the Field
For a tank deployed outdoors — on a construction site through summer, in a paddock through a full season, as a standing emergency reserve — the seam faces the same UV load, thermal cycling, and mechanical stress as the rest of the fabric. An HF-welded seam has no additional failure mode beyond the base material. An adhesive-bonded seam introduces a separate interface that ages on its own schedule.
We've seen adhesive-bonded tanks from lower-cost suppliers show seam delamination within two to three outdoor seasons. HF-welded tanks in comparable conditions routinely reach five to ten years of service life, with proper storage between deployments.
The difference shows up in the cost calculation.
The Real Cost Comparison
Adhesive-bonded tanks come in at a lower unit price — and that number wins tenders. But the relevant figure for any B2B buyer thinking past the purchase order is cost per year of reliable service.
Consider a straightforward example. A discounted adhesive-bonded pillow tank, replaced after three outdoor seasons: unit cost spread across three years, plus the operational cost of sourcing and deploying a replacement. A ZolinFlex HF-welded equivalent — higher upfront, eight years of outdoor service life: lower cost per year, no replacement cycle to manage.
For applications where the tank is part of a critical reserve — fire suppression infrastructure, emergency staging, irrigation supply for a growing season — a seam failure carries operational consequences that don't appear in the original quote comparison.
Questions Worth Asking Any Supplier
These separate manufacturers who run genuine HF welding from those who claim it:
- What frequency does your HF equipment operate at, and what electrode configuration for this product?
- Can you provide pull-test data showing seam strength as a percentage of base fabric tensile strength?
- Are seam parameters documented per production batch?
- Is welding performed on your own equipment or subcontracted?
A manufacturer running in-house HF welding with documented parameters will answer these directly. One that can't is telling you something about their process.
ZolinWorks seam specifications and production parameters are available on request for commercial enquiries.
